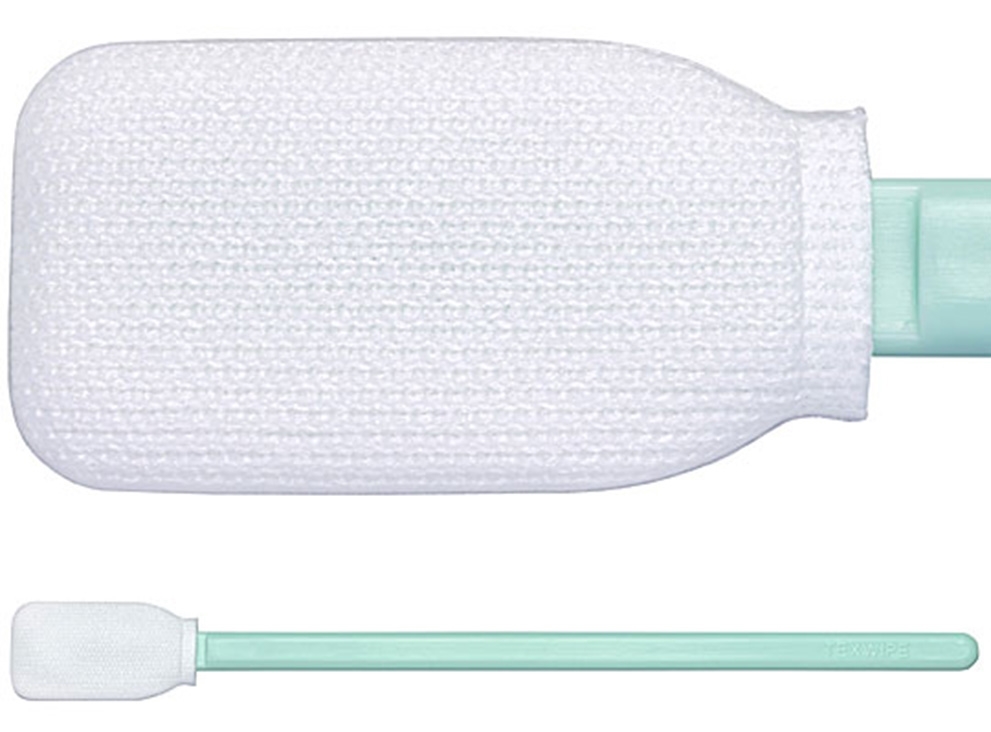

Picture of Large Alpha® TX714A

Large Alpha® TX714A

The Large Alpha® Swab is a polyester swab for cleaning broad surfaces and flat areas. Widely recommended for surface sampling and cleaning validation work, its cleanliness levels provide a neutral background for the sample obtained. An ideal choice for controlled cleaning and sampling of large areas.

Its cleanroom laundered, knitted Alpha® polyester head is extremely clean. The 100% continuous-filament polyester substrate is heat-molded (thermally bonded) onto the handle, sealing exposed edges for reduced fiber release and eliminating the need for adhesives. Polyester is soft and nonabrasive, making the swab good for sensitive surfaces.

A long, rigid handle and large internal head paddle provide firm support. Ultralow nonvolatile residue and low particle and fiber generation. Good sorbency and compatible with many cleaning and sampling solvents. May be sterilized by autoclave.

Part No.Head WidthHead ThicknessHead LengthHandle WidthHandle ThicknessHandle LengthTotal Swab Length
TX714A 13mm (0.512") 4.2mm (0.165") 25.7mm (1.012") 5.2mm (0.205") 3mm (0.118") 101.8mm (4.008") 127.5mm (5.020")

Part Number: TX714A


€297.66 / Case

Product Specs

Inner Bags: 100 swabs/bag (2 inner bags of 50 swabs) Outer Bags: 10 bags/case Packaging: 1,000 swabs total/case

Applications

  • Precision spot cleaning of grooves, tracks, slots and other small spaces
  • Applying and removing lubricants, adhesives and other solutions in a critical clean environment
  • Solvent use (such as IPA)
  • Appropriate for use with temperatures less than 410°F
